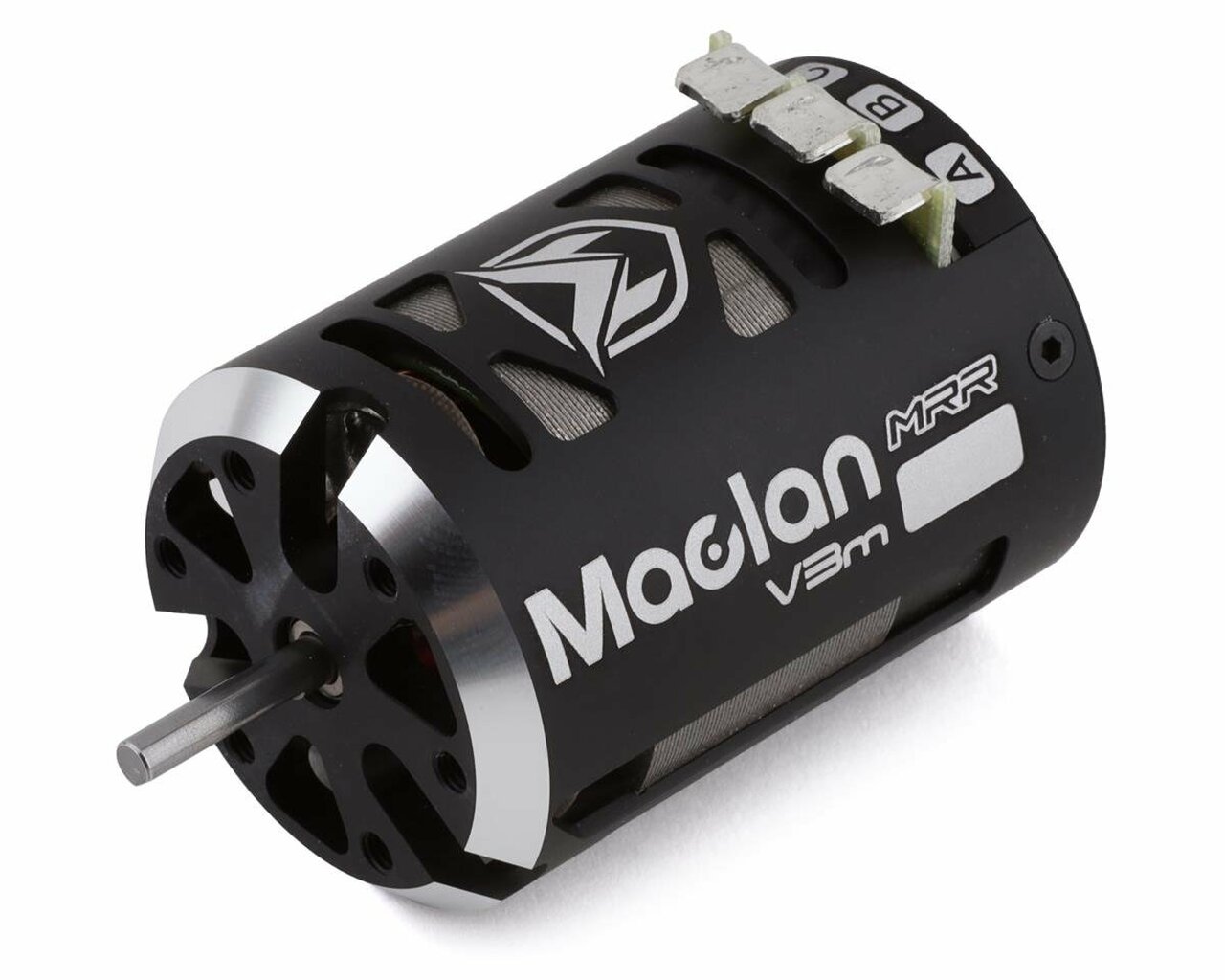

Maclan MRR V3m Competition Sensored Modified Brushless Motor


  • $129.99
    Unit price per
Shipping calculated at checkout.

Will be in stock after

Maclan MRR V3m Competition Sensored Modified Brushless Motor

MRR V3m competition motors are the latest efforts by Maclan Racing. Based on the successful V2m platform with various updates to improve overall performance to the next level. Improvements in this generation are significant and will make a noticeable performance gain. That includes:

  • Engineered & Developed right here in the U.S.A.

  • All new 1-piece precision machined motor can design that eliminates the need for long motor can screws. The new design uses a total of 5 short screws. It saves weight and no more optional screws required.

  • All new stator shape that meets the latest ROAR regulations for the highest legal performance.

  • Realigned sensor positions for more accurate reading.

  • 12.20mm Ultra Smooth Rotor is the standard in the V3m modified versions.

  • ROAR/EFRA/BRCA approved.

Item (V3m Modified Class) Value
V3m Available Turns: 3.5/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.5/9.5/10.5
Short Stack: No
Case Length: 51.20mm
Case Diameter: 36.00mm
Shaft Extension: 14.00mm
Shaft Size: 3.17mm
Weight: 155g±3g
Screws Size (end cap): M2.5x6 (1.5mm Hex)
Screw Size (motor can): M2x6 (0.05" Hex)
Front Bearing Size: ID: 3.175mm OD: 9.525mm H: 3.9675mm
Rear Bearing Size: ID: 3.175mm OD: 7.9375mm H: 3.5712mm
Poles: 2-Pole
Default Rotor: MCL4230 12.20mm Ultra Smooth Rotor (Red)
Optional Rotor MCL4231 12.50mm High Torque Rotor (Black)
ROAR/EFRA/BRCA Approved: Yes
